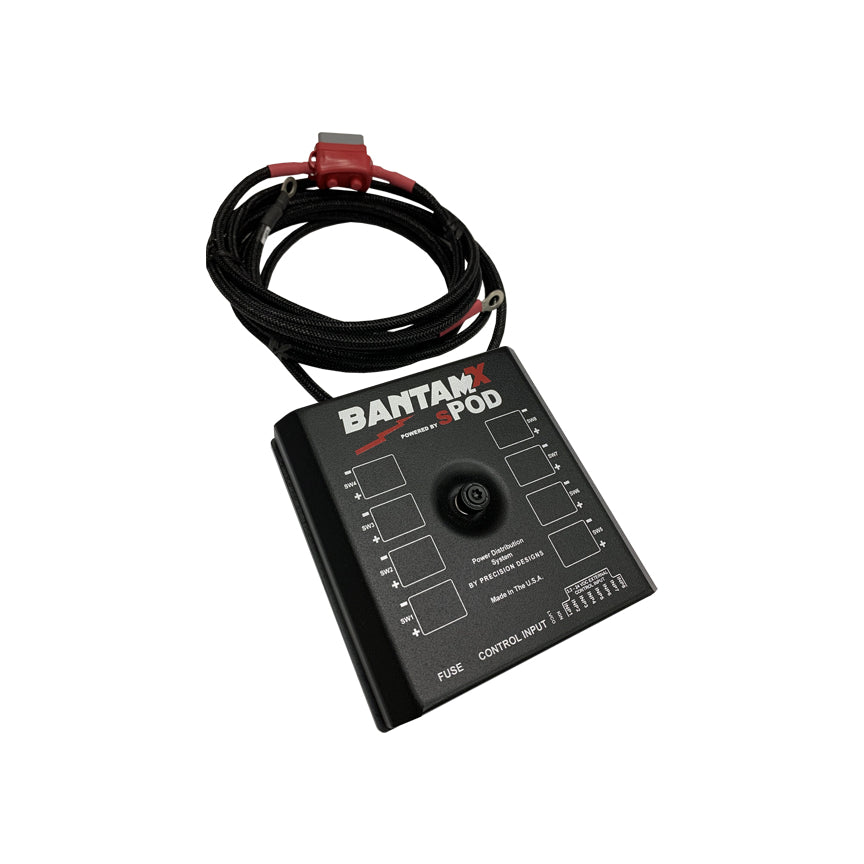

Bantamx Add-On For Uni With 36 Inch Battery Cables

SKU: S026 BX-UNI-36-ADD
$60242

Description

This is an add-on BantamX for existing sPOD systems/controllers only! Controller not included. The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.Note: At least one sPOD controller must be connected in order for system work work properly.Features:BantamX Add-on for Uni with 36 Inch battery cablesFully programmable, digital controlled system8 circuits rated at 30 amps at 12.5 VDC per circuit16-position terminal block (easily attach accessories)2 controller ports (RJ45) for Ethernet cablesIntegrated low voltage cutoff (LVCO) battery protection w/ optional overrideOne ATM mini-style fuse for LVCO protection and resetFailsafe self-healing fault protection system (from 1.5 to 30amps)Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)50amp auto-resetting circuit breakerNylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacketOperates on 12VDC or 24VDC8-position input terminal block for controlling outputsBuilt-in Bluetooth capabilities for remote controlProtection against: overheating, over-current, shorts, reverse polarity and field collapseIgnition control and safety lock-out for switches 1 and 2 (optional)Up to 4 BantamX units can be daisy chained and controlled by one TouchscreenOn-demand wireless software updates/upgradesHardware:Powder coated steel base w/ built in hardwareSilicone gasket for weatherproofingAluminum lidVehicle specific mounting optionsRobust insulated base and coverFeatures Available Through sPOD Mobile App (free):Each switch can be programmed for:DimmingStrobeFlashMomentarySwitch LinkingOn Road and Off Road mode of operationThe following features are only available through the purchase of our Pro-Series mobile App:Circuit timersSwitch lockoutInitial startup current for each circuit is raised to 65amps for 5 secondsProgram any circuit to be always on while still maintaining fault protectionOption to disable deep sleep modeSelectable auto restart after circuit shuts down from over current/shortProgrammable Current Limiting (in 2amp increments up to 30amps)Selectable auto restart for current limiting shut downSelectable Latch or Momentary actions for inputsProgrammable ignition control for all 8 circuitsVariable strobe function to create custom flash/strobe patternsExternal Controller Options (not included with system and can only be used in conjunction with an sPOD controller):Third party switchesComputersArduinoRaspberry PiAlpine Audio systems KAC-001 head unit controllerSensors, thermostats, pressure switches, fan controllers and moreBluetooth Requirements:Access to iTunes or Google Play Store to download the sPOD appBluetooth 4.0 compatibleCompatible with Android devices running 8.0 Oreo (API 26) or laterCompatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad miniMust have existing sPOD system

Made in the USA!
